AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

  • Supports Up to AMD Ryzen 5000 Series Desktop Proecessors
  • Supports DDR4 Memory, up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

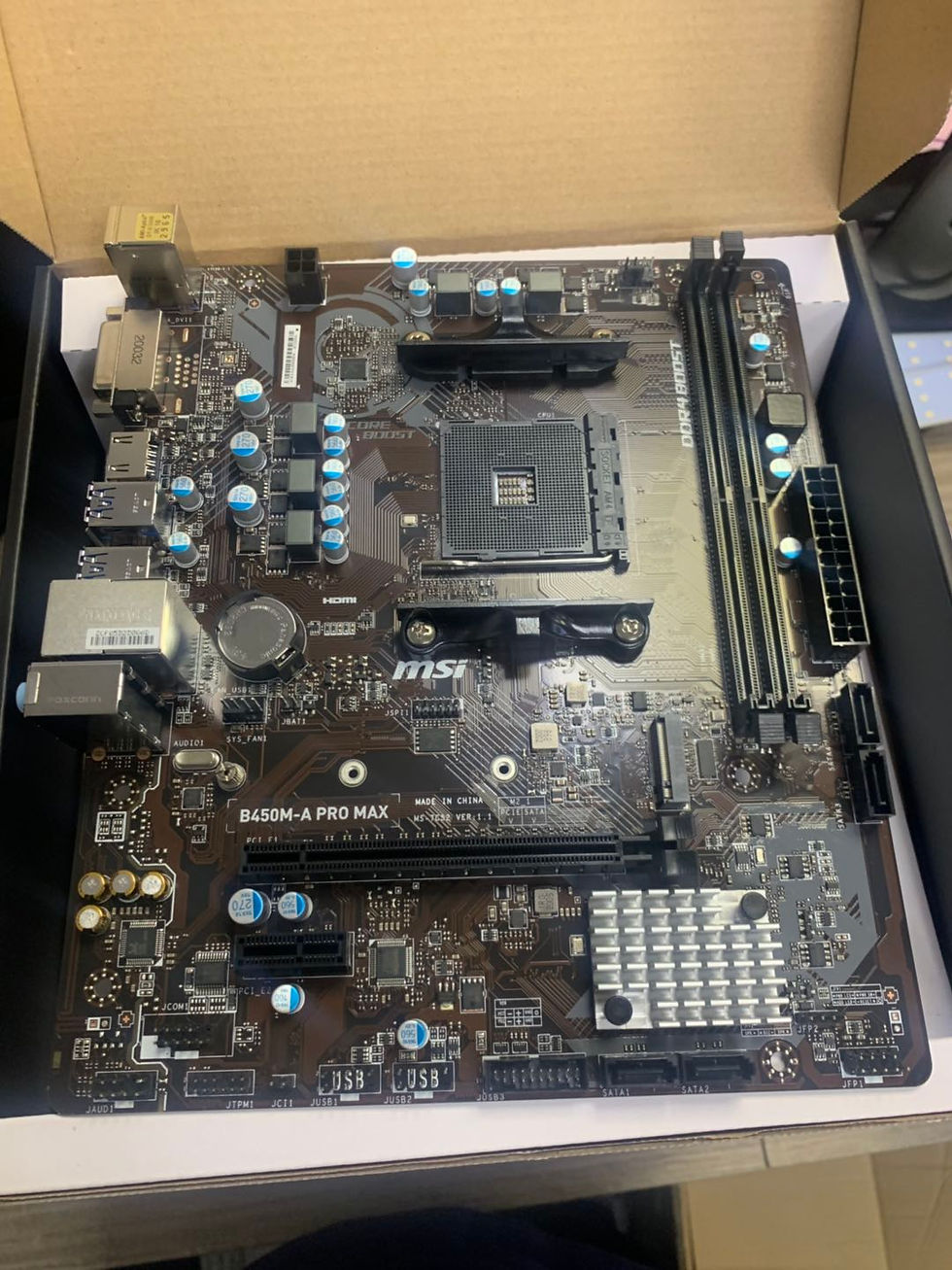

MSI B450M A PRO MAX - Supports AMD Ryzen & Up To 64GB DDR4 RAM

SKU: 081
USh500,000Price
  • SOCKET AM4
    CPU SUPPORT Up to AMD Ryzen 5000 Series
    CHIPSET AMD® B450 Chipset
    DDR4 RAM Up to 4133MHz
    RAM CHANNEL Dual
    RAM SLOTS 2
    MAX RAM (GB) 64
    PCI-E X16 1
    PCI-E GEN Gen3
    PCI-E X1 1
    SATAIII 4
    M.2 SLOT 1
    WIFI & BLUETOOTH NO
    TPM (HEADER) 1
    LAN 1x Realtek® 8111H
    USB 3.1 PORTS (FRONT) 2(Gen1, Type A)
    USB 3.1 PORTS (REAR) 4(Gen1, Type A)
    USB 2.0 PORTS (FRONT) 4
    USB 2.0 PORTS (REAR) 2
    SERIAL PORTS(FRONT) 1
    AUDIO PORTS (REAR) Realtek® ALC892/ALC897 Codec
    DISPLAYPORT 1
    HDMI 1
    DIRECTX 12
    FORM FACTOR Micro-ATX
    SLI/CROSSFIRE No
    OPERATING SYSTEM Support for Windows® 10 64-bit
    Support for Windows® 7 64-bit
    * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
